Upgrading to VMware Cloud Foundation 4.4 in my Lab

VMware Cloud Foundation 4.4 was just released so I wanted to check out what was new and upgrade my lab. Going into SDDC Manager and selecting Lifecycle Management and Release Versions gave me an overview of what is new:

  • Flexible vRealize Suite product upgrades: Starting with VMware Cloud Foundation 4.4 and vRealize Lifecycle Manager 8.6.2, upgrade and deployment of the vRealize Suite products is managed by vRealize Suite Lifecycle Manager. You can upgrade vRealize Suite products as new versions become available in your vRealize Suite Lifecycle Manager. vRealize Suite Lifecycle Manager will only allow upgrades to compatible and supported versions of vRealize Suite products. Specific vRealize Automation, vRealize Operations, vRealize Log Insight, and Workspace ONE Access versions will no longer be listed in the VMware Cloud Foundation BOM.
  • Improvements to upgrade prechecks: Upgrade prechecks have been expanded to verify filesystem capacity and passwords. These improved prechecks help identify issues that you need to resolve to ensure a smooth upgrade.
  • SSH disabled on ESXi hosts: This release disables the SSH service on ESXi hosts by default, following the vSphere security configuration guide recommendation. This applies to new and upgraded VMware Cloud Foundation 4.4 deployments.
  • User Activity Logging: New activity logs capture all the VMware Cloud Foundation API invocation calls, along with user context. The new logs will also capture user logins and logouts to the SDDC Manager UI.
  • SDDC Manager UI workflow to manage DNS and NTP configurations: This feature provides a guided workflow to validate and apply DNS and NTP configuration changes to all components in a VMware Cloud Foundation deployment.
  • 2-node vSphere clusters are supported when using external storage like NFS or FC as the principal storage for the cluster: This feature does not apply when using vSAN as principal storage or when using vSphere Lifecycle Manager baselines for updates.
  • Security fixes: This release includes fixes for the following security vulnerabilities:
  • Multi-Instance Management is deprecated: The Multi-Instance Management Dashboard is no longer available in the SDDC Manager UI.
  • BOM updates: Updated Bill of Materials with new product versions.

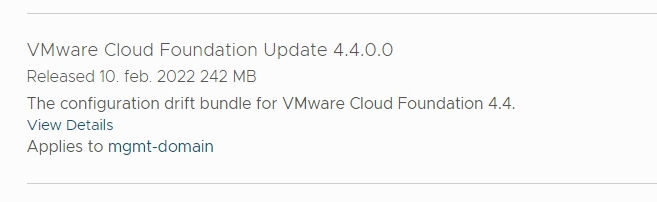

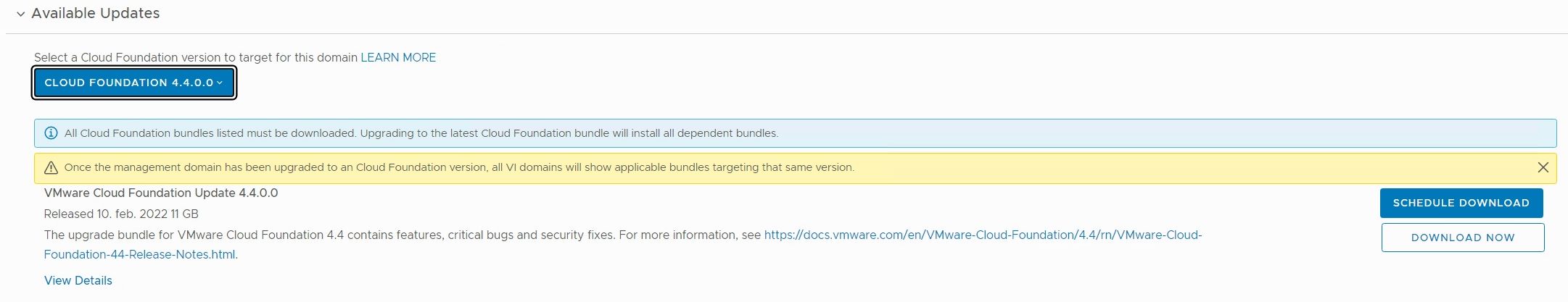

Going to my Management Workload Domain showed that the upgrade was available for download:

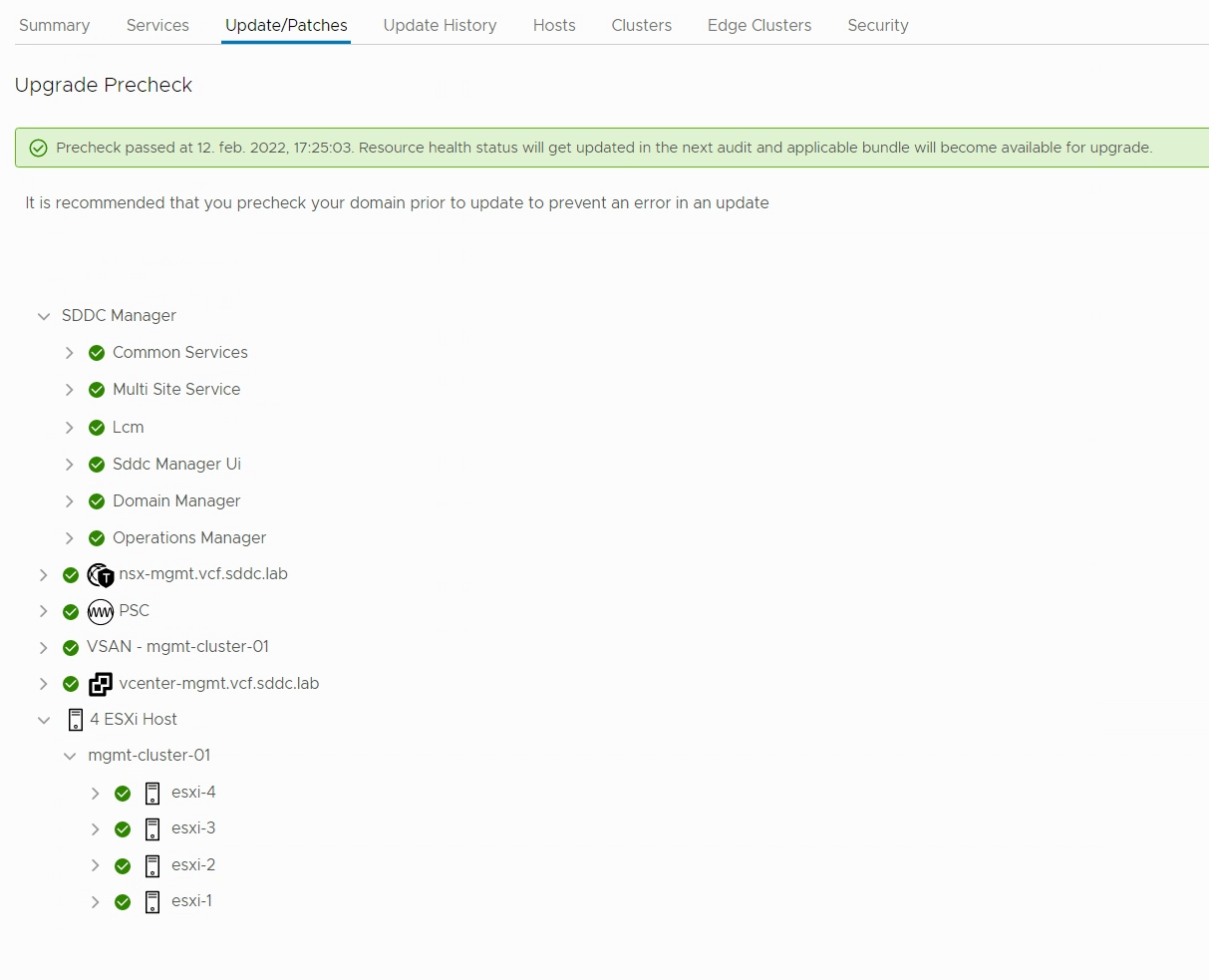

I did a precheck to verify that my environment was ready to be upgraded:

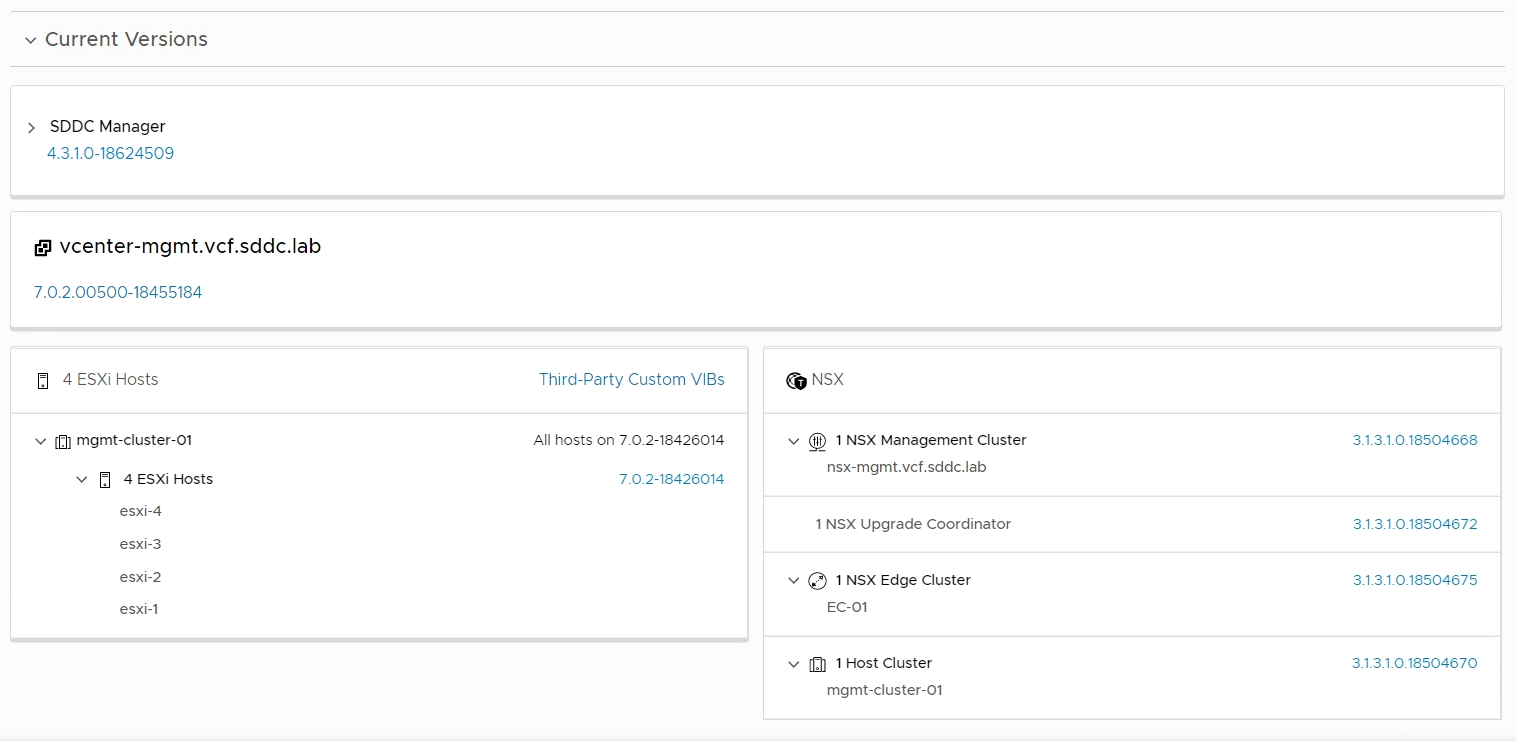

I checked what my current versions were at:

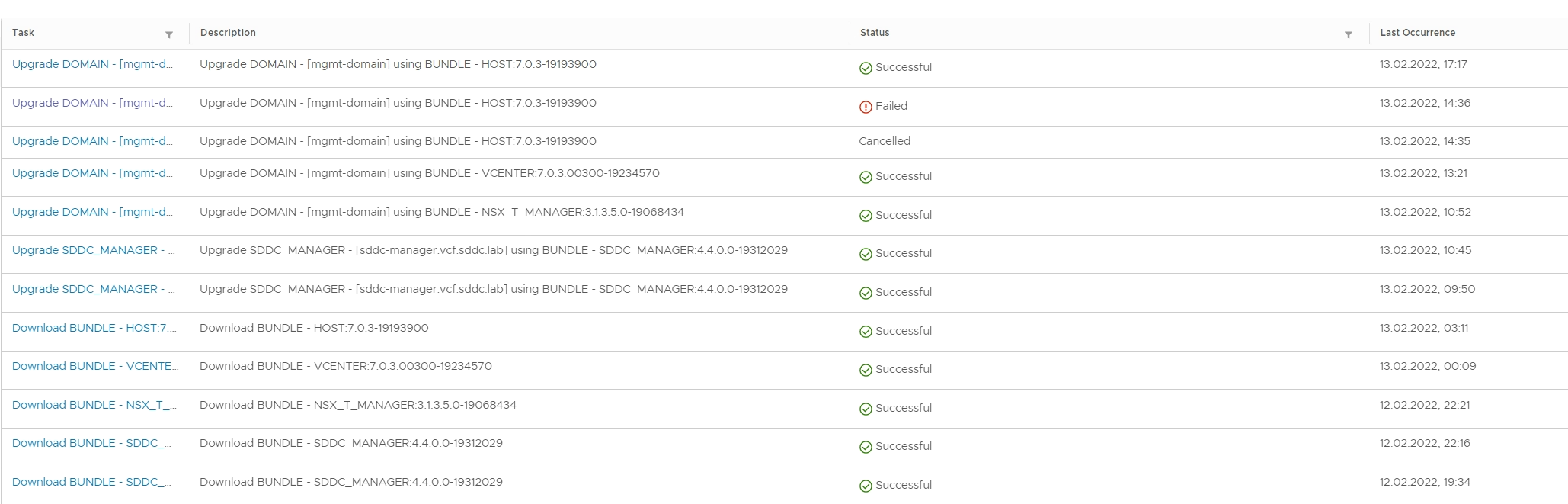

I downloaded and installed all the update bundles in the order dictated by SDDC Manager, and everything went well except for the first ESXi host upgrade:

The first ESXi host did not exit Maintenance Mode after being upgraded, hence the post check failed:

Message: VUM Remediation (installation) of an ESXi host failed.
Remediation Message: High: VUM Remediation (installation) of an ESXi host failed. Manual intervention needed as upgrade failed during install stage. Check for errors in the lcm log files located on SDDC Manager under /var/log/vmware/vcf/lcm. Please retry the upgrade once the upgrade is available again.

Health check failed on vSAN enabled cluster while exiting maintenance mode on the host: vSAN cluster is not healthy because vSAN health check(s): com.vmware.vsan.health.test.controlleronhcl failed. The host is currently in maintenance mode.

The following KB addresses this issue, and I chose workaround number 3 which was to exit maintenance mode manually: https://kb.vmware.com/s/article/87698

Retrying the upgrade successfully upgraded the rest of my ESXi hosts.
